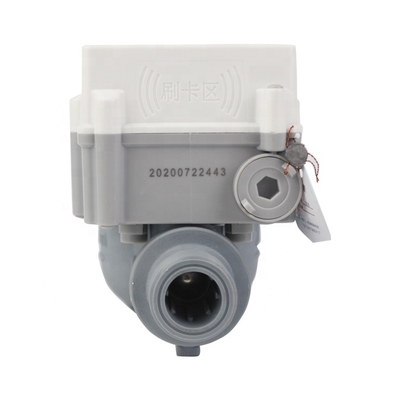

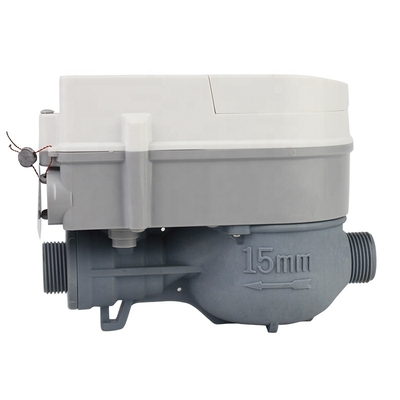

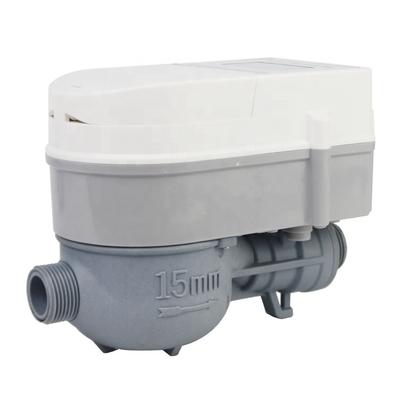

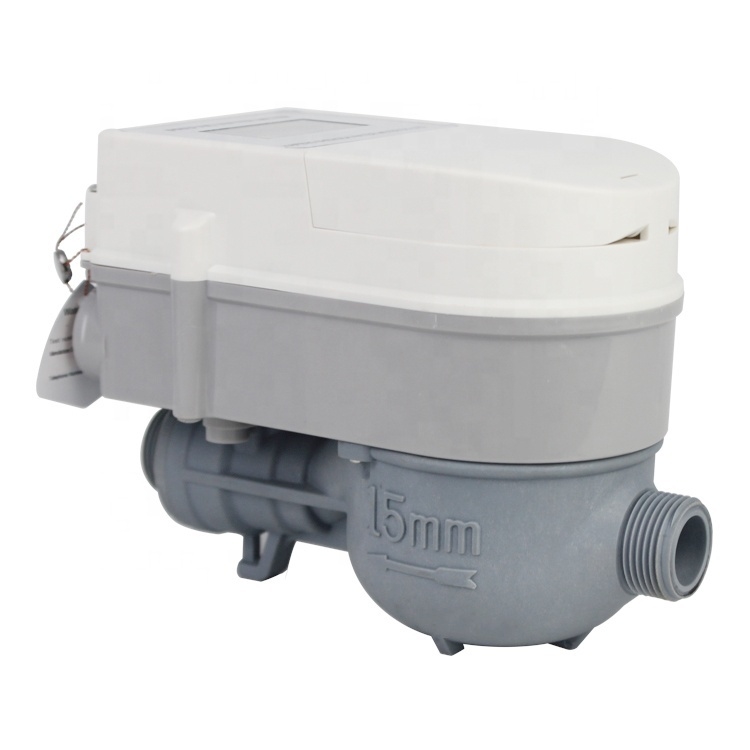

Name: Super Plastic Smart Mechanical Prepaid Block Water Meter Card Reader
Brand: Kaifeng Shengda Water Meter Co., Ltd.
SKU: LXSK-15-25E
Availability: InStock

Home Products Prepaid card water

Super Plastic Smart Mechanical Prepaid Block Water Meter Card Reader

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shengda
Model Number:	LXSK-15-25E

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Flow Rate:	2.5m3/h	Measurement Range:	DN15-25
Type:	Multi-jet Meters, Prepaid Water Meters	Material:	Nylon
Connectivity:	Threaded	Protection Class:	Ip68
Product Name:	Super Plastic Smart Mechanical Prepaid Block Water Meter Card Reader	Size:	DN15-25
Pressure Lose:	0.1mpa	Max Water Pressure:	Less Than 1MPa
Operating Voltage:	3.0~3.6v	Water Termperature:	0.1~30℃
Valve Switch Times:	More Than 2000 Times	Standard:	GBT 778
Internal Lithium Battery Life:	3~5 Years	Color:	Grey

Super plastic smart mechanical prepaid block water meter card reader

Product Description

Specification

Item	Flow range			Q3	Q4	Q2	Q1	Min. reading	Max. reading
Item		Q3/Q1	Q2/Q1	m3/h						m3
LXSK-15	80	1.6	2.5	3.125	0.05	0.03125	0.0001	999999
LXSK-20	80	1.6	4.0	5	0.08	0.05	0.0001	999999
LXSK-25	80	1.6	6.3	7.875	0.126	0.07875	0.0001	999999
LXSK-32	80	1.6	10	12.5	0.2	0.125	0.0001	999999
LXSK-40	80	1.6	16	20		0.2	0.0001	999999
LXSK-50	80	1.6	25	31.25	0.5	0.3125	0.0001	999999

Working conditions:

Flow range: Q1~Q3 (Q4 short time work not change error) Ambient temperature: 5℃~55℃ Ambient moisture: (0~93)%RH Water temperature: cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃ Water pressure: 0.03MPa~1MPa (short time work 1.6MPa not leak, no damage) Pressure loss: ≤0.063MPa

Installation

Straight pipe length fore water meter is 10 times of DN, straight pipe length behind water meter is 5 times of DN. Flow direction should be the same as the arrow on the body directs.

Ordering precautions:

The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.

The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Till now our products are sold to over 130 countries over the world. We have some agents in other countries, 7 branches at home. Our products won very good reputation from customers at home and abroad.

Your coming and visit is warmly welcome!

FAQ

What's the payment term? We accept T/T, LC, WEST UNION, PAYPAL, CASH, Alipay, Wechat, etc. What's the delivery time ? Usually it depends on the requirements and quantity may take 10~30days around. What is the standard of package? Export standard package or special package according to customer requirement What kind of product quality your factory offer?

We offer most competitive prices with best quality Can you accept to use our logo? We accept OEM with your autherization. We want to know monthly capacity? 100000pcs/month, each product has different production capacity, we can talk details by email. Which market do you already sell? We already ship to Africa, Middle East, South America, Asia, etc. What kind of certificate you have? We have lSO, CE, MID, etc.
