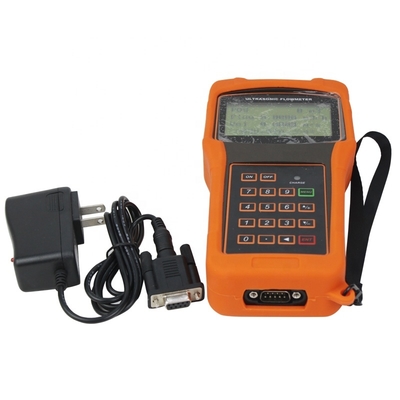

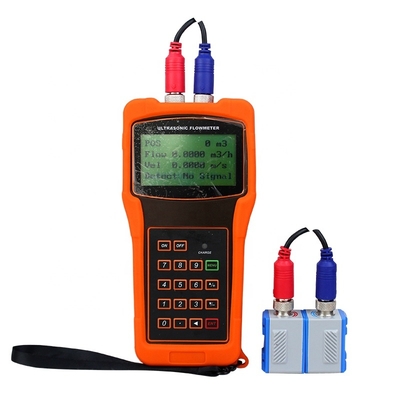

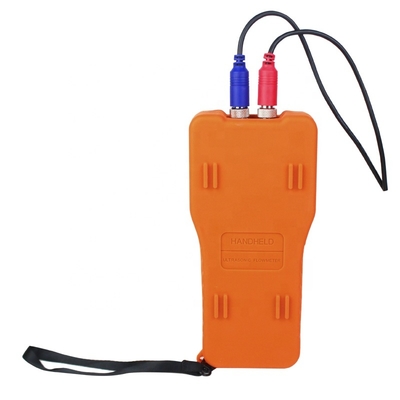

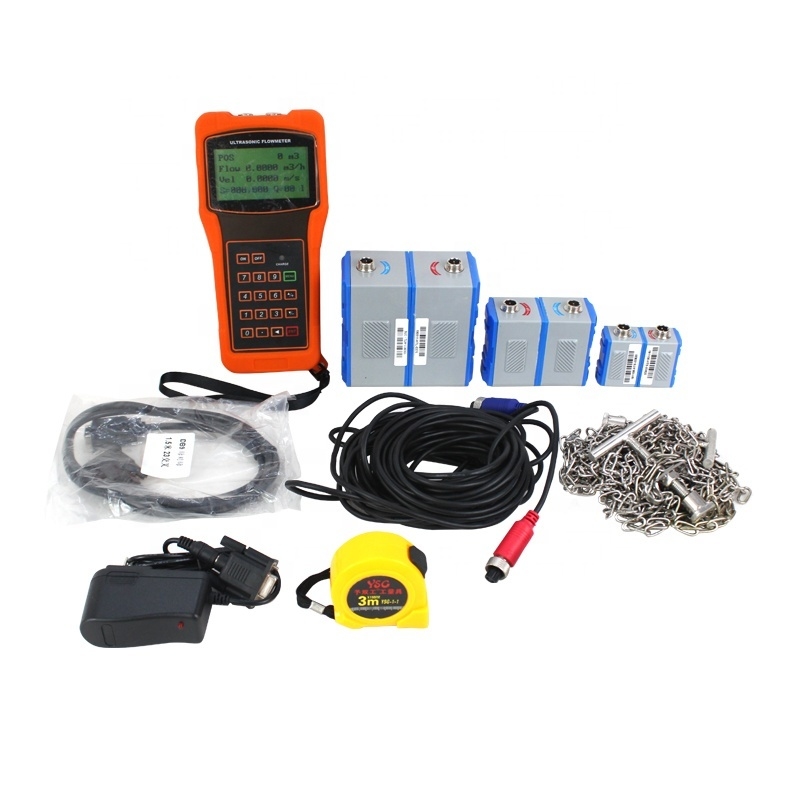

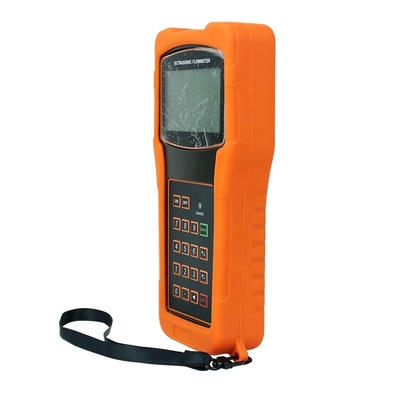

Shengda 15-700mm Digital Handheld Ultrasonic Flowmeter Price

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shengda
Model Number:	SDLD-15-6000

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Flow Rate:	0~10m/s	Measurement Range:	DN15-6000
Accuracy:	+/-1%, Other	Type:	Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Material:	Plastic, Metal	Medium:	Water, Liquid, Liquid
Connectivity:	Clamp-on	Product Name:	Shengda 15-700mm Digital Handheld Ultrasonic Flowmeter Price
Keywords:	Ultrasonic Flow Meter	Accuracy:	1.0%
Power Supply:	3.6vDC	Output:	4-20mA
Water Temperature:	-25~180c	Standard:	Ce, Iso9001
Protection Class:	IP65	Color:	Orange

Shengda 15-700mm digital handheld ultrasonic flowmeter price

Product Description

Shengda 15-700mm digital handheld ultrasonic flowmeter price

Parameters:

Host	4 lines of characters on the same screen display instantaneous flow, flow rate, cumulative flow, signal status, etc.
	Built-in data logger, can record date, cumulative flow, signal status, working time, etc.
	Standard data interface RS232 is used to export recorded data or network detection
	OCT output positive, negative, net cumulative pulse signal and frequency signal (1-9999Hz)
Accuracy	Better than ±1%
Flow rate range	0.01~32m/s
Measuring medium	Uniform, single and stable liquids such as water, sea water, industrial sewage, alcohol, acid and alkali liquid, various oils, etc.
Applicable pipe	Steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other dense pipelines are allowed to be lined
Straight pipe	The sensor installation point is best to meet: upstream 10D, downstream 5D, 30D from the pump outlet (D is the pipe diameter)
Power supply	Built-in Ni-MH rechargeable battery can work continuously for more than 10 hours
Size	200x92x32mm
Weight	390 grams
Remarks	Equipped with an integrated aluminum alloy protective box, which can be used in harsh outdoor environments

Measuring principle:

Using the time difference measurement principle: one probe transmits a signal through the pipe wall, the medium, and the other side of the pipe wall, and is received by the other probe. At the same time, the second probe also transmits the signal and is received by the first probe. The influence of the medium flow rate has a time difference Δt. According to the calculation, the conversion relationship V=(C2/2L)×Δt between the flow velocity V and the time difference Δt can be obtained, and the flow rate value Q can be obtained.

Shengda 15-700mm digital handheld ultrasonic flowmeter price

Company Information

Shengda 15-700mm digital handheld ultrasonic flowmeter price

FAQ

FAQ: Shengda 15-700mm digital handheld ultrasonic flowmeter price

1.Are you a trade company or a manufacturer?
Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.

2.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.

3.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.

4.Can you produce the products according to my own drawings?
Yes, we can do OEM according to your requirement.
