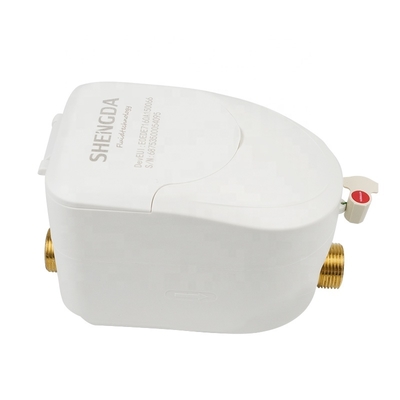

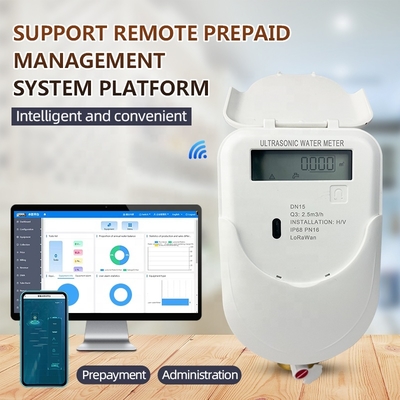

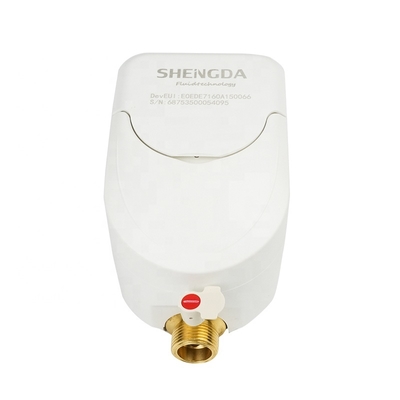

Name: Lorawan/Gsm/Nb-iot Smart Digital Ultrasonic Water Meter Lcd Display
Brand: Kaifeng Shengda Water Meter Co., Ltd.
Availability: InStock

Home Products Hot Products

Lorawan/Gsm/Nb-iot Smart Digital Ultrasonic Water Meter Lcd Display

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shengda
Certification:	CE, ISO, MID, etc.

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Type:	Ultrasonic Meters	Material:	Brass, Plastic
Protection Class:	Ip68	Product Name:	Lorawan/Gsm/Nb-iot Smart Digital Ultrasonic Water Meter Lcd Display
Keyword:	Smart Ultrasonic Water Meter	Size:	DN15~DN25
Type:	Smart Digital Ultrasonic Water Meter	Temperature:	Cold Water: 0.1-50℃ / Hot Water: 50-90℃
Standard:	ISO 4064 ClassB	Application:	Household, Commercial, Industrial, Etc.
Color:	White	Material:	Brass Material

Lorawan/Gsm/Nb-iot Smart Digital Ultrasonic Water Meter Lcd Display

Techinical parameters:

Caliber	DN15	DN20	..
Minimum Flow (Q1)	0.01	0.016	..
Common Flow (Q2)	2.5	4.0	..
Maximum Flow (Q3)	3.125	5	..
Range ratio	250
Accuracy grade	Class B
Working pressure	≤ 1. 6MPa
Pressure loss	P40
Level of protection	IP65
Working water temperature	5 ~ 55 ℃
Communication mode	Lorawan/NB/GPRS/RS485
Power supply	3.6 V
Key	Magnetic induction button
Screen	LCD8 bits
Display Range	0 m ³ ~ +99999.999 m ³

Communication motherboard parameters:

Measurement method	Ultrasonic dual channel	Abnormal remind	Abnormal failure report, voltage and current alarm	Periodic reporting	Periodic reporting data
Historical data storage	Store hourly /daily /monthly for 90days	Indicator lamp	Communication lamp/trigger lamp	Battery voltage alarm	Alarm when the power is less than 10%
Call the police	Buzzer	Screen display	LCD	Uart	4 -wire
External storage	256K	AI SET	Pin type 4 needles	Environment temperature	-40~85℃
Support agreement	Big-end mode HEX	Communication current	20MA	Monitor	Digital display

Lorawan/Gsm/Nb-iot Smart Digital Ultrasonic Water Meter Lcd Display

Ordering precautions: The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.

Price: The price here is only for reference, the accurate price please contact us to get.

The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.

Welcome to inquire us and cooperate with us!

Tel: +86 371 23366506

Mobile: +86 18603780816 / 18637817105

E-mail: admin(@)kfzhyb.com
