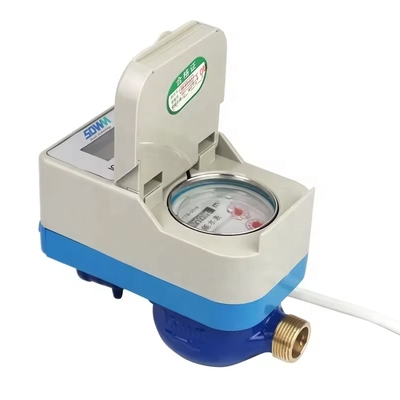

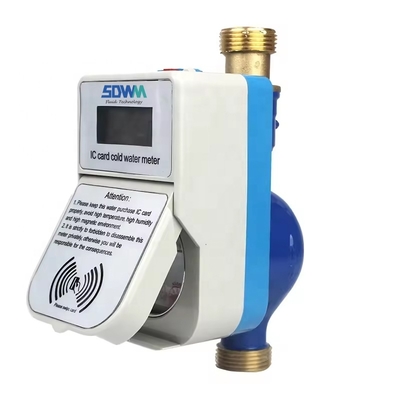

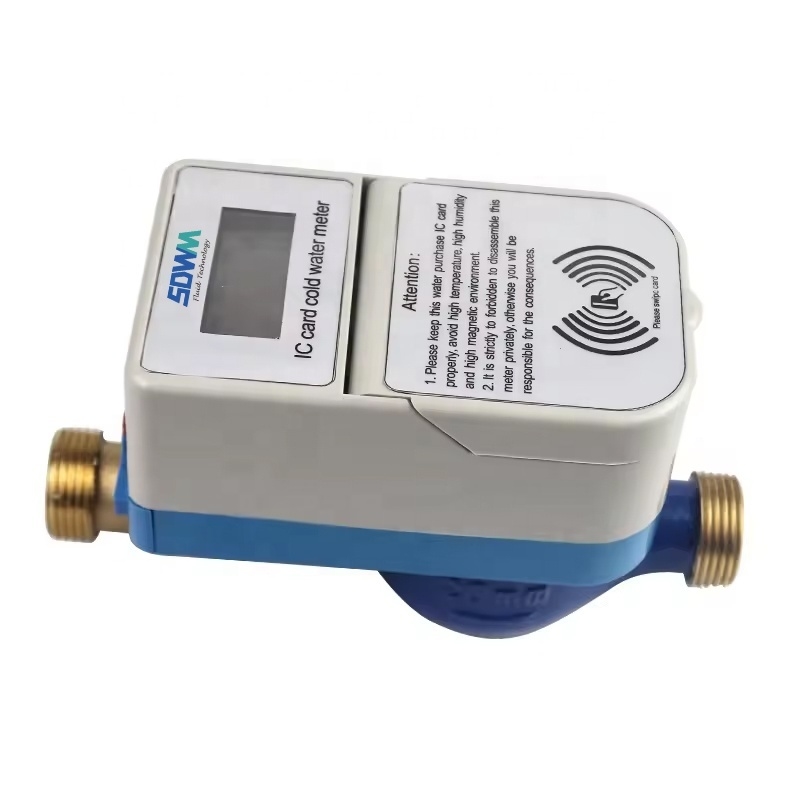

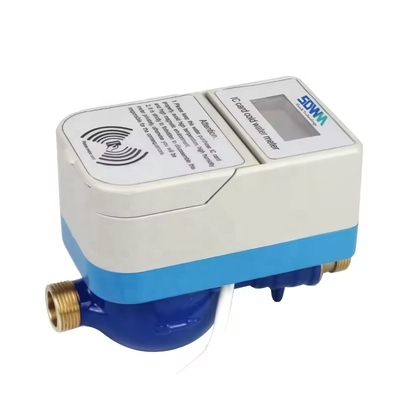

IC card smart prepaid digital water meter product introduction:
Smart IC card water meter (one meter matches many cards):

The product meets the requirements of "individual subjective water saving and water billing to people", and achieves the purpose of subjective water saving. Pay for water and use water with card. Place the IC card, open the water meter valve and start water supply (remove the card after water supply). After water use, place the IC card again, the water meter valve closes and stops water supply. At the same time, the IC card takes away the information in the water meter and records the water consumption in their respective cards. Less water and less payment have mobilized people's awareness of water conservation. It is mainly used in baths, shopping malls, schools and other public places.

Characteristic:

1. Integrated design of meter and valve, transmiting type base meter, flexible valve action, low energy consumption and corrosion resistance;

2. Prepayment function to speed up the return of funds and eliminate arrears;

3. It has the function of one card, multiple meters and step billing;

1) The water meter and IC card are mutually identified, that is, all IC cards in the system can take water from any water meter;

2) The water meter has the functions of automatic billing, automatic prompt for water purchase, valve opening and valve closing;

3) The water meter base meter is actually an IC card heat meter base meter, and its accuracy is much higher than that of an ordinary IC card base meter;

4) It has the functions of anti magnetic attack, anti disassembly and anti cutting;

5) Low power technology design, ultra-low power consumption.

4. Replace the battery without dismantling the meter, and prevent unauthorized disassembly of the water meter - monitoring function;

5. Micro power consumption design is adopted, which consumes energy only when the water meter opens and closes the valve;

6. Equipped with imported sensors, the sampling technology is accurate and reliable;

7. Comprehensive monitoring of water consumption information and fault causes of water meter;

8. The circuit board adopts fully enclosed structure, and the battery is enclosed with an outer sleeve.

Technical parameters:

1. The product technical standards shall comply with CJ / j133-2007; The drinking water meter shall comply with iso4064-1-3:2005;

2. The maximum allowable error of the base meter shall meet the requirements of class B meter in GB / T 778.1-1996;

3. Nominal pressure: 1.0MPa: pressure loss: ≤ 0.1MPa; Working voltage: 3.6V ± 0.6V; Static current: ≤ 10 μ A;

4. Controller accuracy: ≤ 0.1%; Durability: card holder > 100000 times; Electric control valve: ≥ 10000 times;

5. Medium temperature: cold water meter 0 ~ 30 ℃; Hot water meter 30 ~ 90 ℃.

Installation precautions:

1. The installation position shall avoid exposure, flooding, freezing and pollution, so as to facilitate card insertion and reference;

2. It shall be installed horizontally, the display screen shall be upward, and the water flow direction shall be consistent with the arrow;

3. Before installation, the pipeline shall be cleaned and the garbage and foreign matters such as sand and stone shall be removed.

Main technical parameters:

Smart prepaid meter software blue tooth water meter 9001 with auto shut off

Workshop corner:

Ordering precautions: The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.

Price: The price here is only for reference, the accurate price please contact us to get.

The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.

Smart prepaid meter software blue tooth water meter 9001 with auto shut off

Smart prepaid meter software blue tooth water meter 9001 with auto shut off

Smart prepaid meter software blue tooth water meter 9001 with auto shut off
