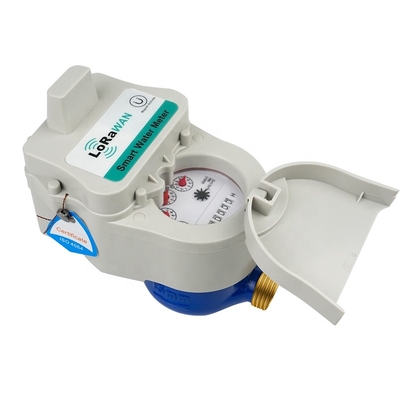

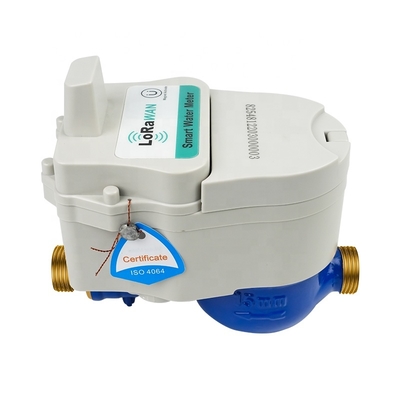

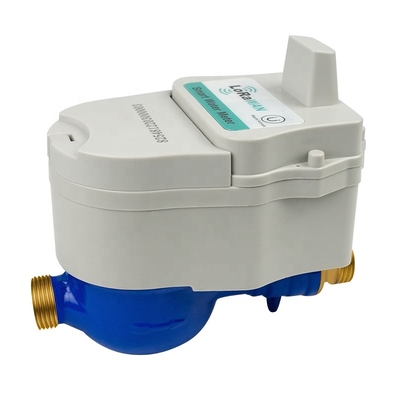

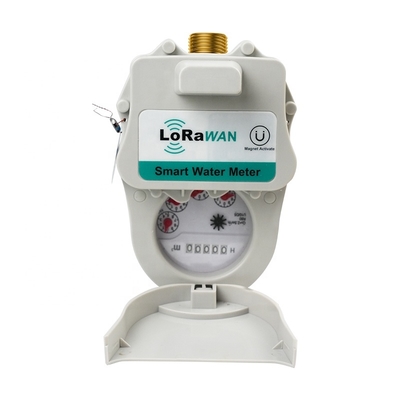

Name: Utility Water Meter Lorawan Radio Module Smart Water Meter with App
Brand: Kaifeng Shengda Water Meter Co., Ltd.
SKU: LXSY-15-25E
Availability: InStock

Home Products Lorawan water meter

Utility Water Meter Lorawan Radio Module Smart Water Meter with App

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shengda
Model Number:	LXSY-15-25E

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Flow Rate:	2.5m3/h	Measurement Range:	DN15-300
Type:	Multi-jet Meters	Material:	Brass, Plastic
Connectivity:	Threaded, Flanged	Protection Class:	Ip68
Product Name:	Utility Water Meter Lorawan Radio Module Smart Water Meter With App	Size:	DN15-25
Operating Voltage:	DC6-15V,DC24-42V	Quiescent Current:	≤1.3μA
Operating Current:	≤20μA	ON/OFF The Valve:	≤15μA
TransmissionDistance:	1200M	Battery Life:	3~6 Years
Communication:	DL/T645, CJ/T188 MODBUS	Operating Temperature:	0~60c, ≤95%RH

Utility water meter lorawan radio module smart water meter with app

Product Description

Product advantages

①Real tested distance: Urban distance: ≥5km Open distance: ≥15km ②Technical support: easy operation, remote support; ③Large-scale networking, a single gateway may connection of 5000 nodes; ④Spread spectrum technology, high anti-interference capability; ⑤Low power consumption, stable network, super coverage; ⑥A star network topology making it flexible to build up and easy to maintain.

Specification

Model-DN	Flow range			Q3	Q4	Q2	Q1	Min. reading	Max. reading
Model-DN		Q3/Q1	Q2/Q1	M3/h						m3
LXY-15	80	1.6	2.5	3.125	0.05	0.03125	0.0001	999999
LXY-20	80	1.6	4.0	5.0	0.08	0.05	0.0001	999999
LXY-25	80	1.6	6.3	7.875	0.126	0.07875	0.0001	999999

Packing & Delivery

Company Profile

FAQ

1.Are you a trade company or a manufacturer? Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers. 2.What to do if I have any other specifications for the current? If you have any different requirements,just contact us and we will meet you. 3.Can you produce the products according to my own drawings? Yes, we can do OEM according to your requirement. 4.Can you provide free sample for pretest? Yes, we can provide free sample for your pretest, and support technical support.
