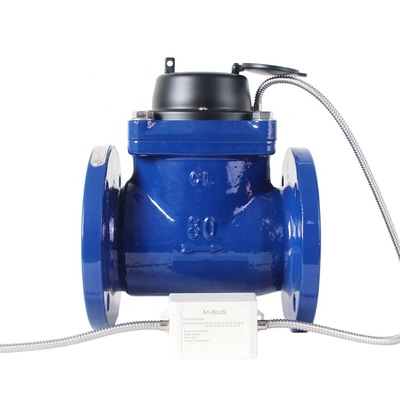

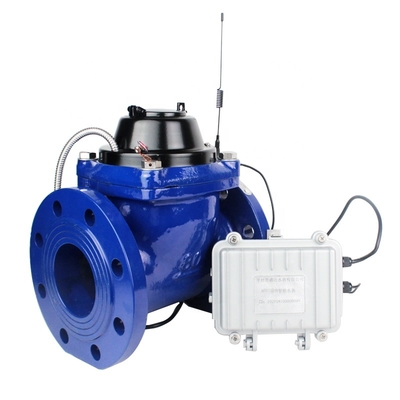

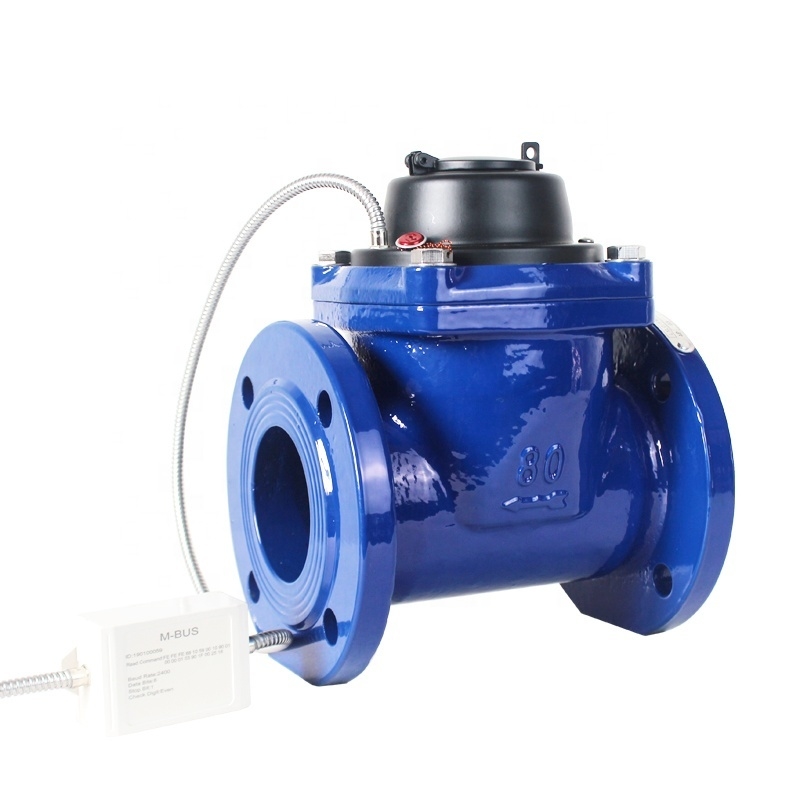

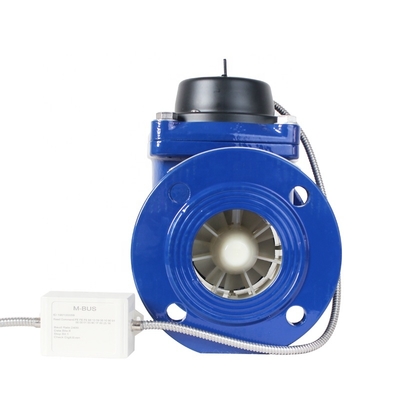

Name: Flange Water Meter Dn150 Wireless Smart Water Meter Manufacturers
Brand: Kaifeng Shengda Water Meter Co., Ltd.
SKU: LXLCY-150
Availability: InStock

Home Products Bulk remote water meter

Flange Water Meter Dn150 Wireless Smart Water Meter Manufacturers

Product Details:

Place of Origin:	Henan, China
Brand Name:	Shengda
Model Number:	LXLCY-150

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Flow Rate:	40m3/h	Measurement Range:	DN50-600
Type:	Multi-jet Meters	Material:	Iron
Connectivity:	FLANGED	Protection Class:	Ip68
Product Name:	Flange Water Meter Dn150 Wireless Smart Water Meter Manufacturers	Keyword:	Smart Water Flow Meter
Standard:	ISO 4064 ClassB	Accuracy:	Class B
Communication Mode:	Wired	Certificate:	ISO9001/ISO14001/OHSAS18001
Feature:	Competitive	Material:	Cast Iron
Installation:	Horizonal	Connection:	Flange Connection

Flange water meter dn150 wireless smart water meter manufacturers

Why Choose Us

Product Description

MBUS remote water meter is used to measure the total flow of water flowing through the pipeline. It is a magnetic transmission dry type (or wet type) direct reading smart water meter. The M-BUS remote water meter is equipped with a direct reading remote transmission module, which uses the photoelectric direct reading meter reading technology to directly read the current dial display number, and the remote meter reading accuracy is high.

Details Images

Smart chip

The smart chip has a data storage function, which does not affect the normal recording of data when the data line or bus is disconnected and the system is powered off.

Detachable structure

The base meter and the sensor part adopt a split and detachable structure, which is convenient for maintenance.

Waterproof, antimagnetic interference

The whole remote water meter is sealed and waterproof, and can be used in a humid environment.

Accurate data

According to the user's needs, the design reading is accurate to 0.001M3, 0.01M3, 0.1M3, 1M3, 10M3 water.

Specification

Work Voltage:	24V-42V
Stand-by current:	≤1.5mA
Working current:	≤20mA
Transmission distance:	1000M
Communication transmission rate:	1200bps-9600bps
Communication protocol:	DL/T protocol CJ/T188 protocol MODBUS protocol
Working environment:	temperature 0 °C ~ +60 °C
Humidity:	≤ 95% RH

Performance curves:

A .Low area(Q1≤Q＜Q2)
maximum allowable error is ±5%

B .High area(Q2≤Q≤Q4)
When water temperature ≤30℃,maximum allowable error is ±2%
When water temperature ＞30℃,maximum allowable error is ±3%

Ordering precautions:

The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.

The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.
